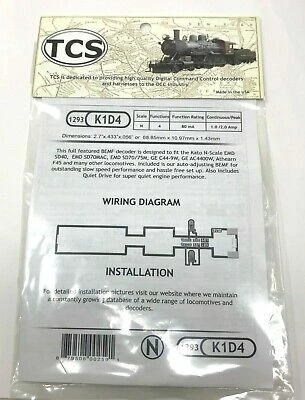

TCS 1293 N Scale K1D4 4 Function DCC Decoder

The K1D4 is a 4-function N-scale drop-in decoder designed for Kato and Athearn locomotives.

FEATURES:

• Back EMF Load Compensation:
• Provides superior slow speed control and high performance under load.
• Quiet Drive:
• Super-quiet motor control for “buzz” free motor performance.
• DC Mode:
• Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
• RailCom®:
• This feature allows the decoder to talk to the command station. RailCom supports expansion for new features.
• Variable Momentum:
• Allows you to make custom acceleration and deceleration curves.
• LED Support:
• This product does not require external resistors when connecting LED’s.
• Incandescent Bulb Support:
• This decoder can be used with 12 Volt bulbs.
• Function Remapping:
• Buttons 0 through 12 may be used to control the lighting functions of this decoder.
• Programmable Lighting Effects:
• Choose from 20 separate user-programmable lighting effects!
• Dimmable Brightness:
• Configure multiple different brightness levels for your LED’s or incandescent bulbs.
• Decoder Lock:
• Feature which prevents accidental/unwanted programming while activated.
• Airwire™ Compatible:
• Fully compatible with Airwire™ operation.
• User-Loadable Speed Tables:
• Configure custom speed curves and set speed limits.
• Interface Type: Drop-In
• Dimensions (L x W x H): 2.705″ x 0.38″ x 0.059″ or 68.7mm x 9.64mm x 1.5mm
• Scale: N Scale
• Continuous/Peak: 1.0/2.0 Amp
• Total Functions: 4
• Function Rating: 80 mA
• 12V Outputs: 2
• LED Outputs: 2
• Onboard LEDs: 2
