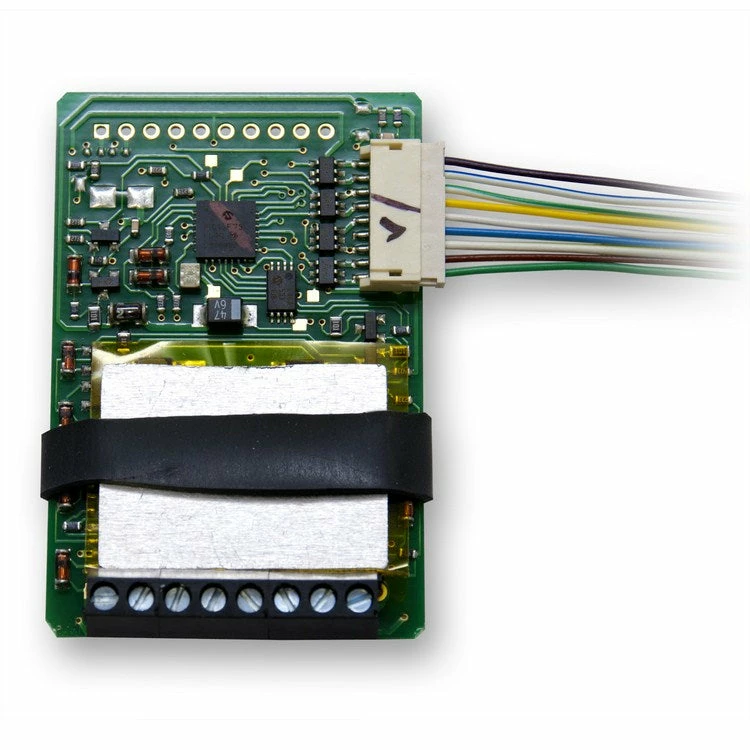

Digitrax DG583S Large Scale G Gauge 8 Function 5 Amp

Hardwire DCC Decoder

DG583S fits all large scale locos. Easy installation with screw terminals for all wire connections. Decoder Lock equipped

SPECIFICATIONS:

• Current Rating-Motor: 5.0 Amps (10.0 Amps Peak)
• Size: 1.45” x 2.23” (36.83mm x 56.64mm)
• Installation: Screw Terminal
• Function Outputs: 8-2 Amps
• Function Type: FX3
• Turn functions on and off.
• Head lights and tail lights are automatically reversing unless you make them independent.
• All function outputs have FX generators for prototypical lighting effects and have qualifiers for FX effects and qualifiers for standard on/off functions.
• All Digitrax Series 3 decoders have FX3 type functions.
• FX3 decoders offer full function mapping so you can choose which function (F0-F12) controls each function lead.
• FX3 decoders offer master light switch capability.
• FX3 decoders offer qualifiers for FX function operation qualified by one of the following: the loco’s direction of travel, whether F0 is on or off, loco direction and F0, or whether the loco is moving or not. These qualifiers are also available on function outputs that are used as standard on/off functions.
• Motor Isolation Note: FX3 decoders have motor isolation protection. If the decoder senses that the motor is not isolated, it will not run the motor. In this case, you will be able to control the loco’s functions but the motor will not work.
